Extremely thin layers of resin that cannot be made into a film by themselves can be layered by coextrusion. In this manner, a number of functions can be combined in a single film such as heat resistance, heat sealing capabilities, rigidity, flexibility, cold resistance, and easy-peel capabilities.
We are able to create co-extruded films by using our unique co-extrusion technology to merge multiple resins together in a die.
★Product Description★

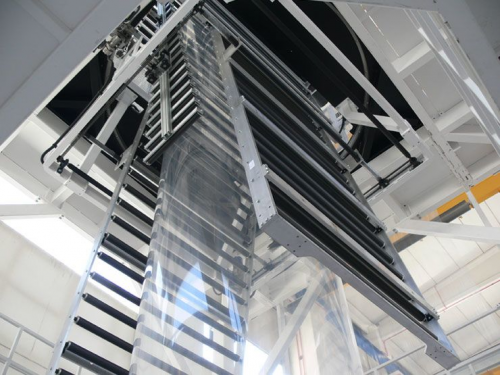

Coextruded multi-layer film is produced by a compound molding technique that simultaneously extrudes thermoplastic resin with multiple extruders and passes that through a single die to build up layers of melted resin both on the inside and outside of a film. A film can be produced on a blown film or cast film extrusion line. It can be made with one layer or multiple layers of material. When a film is made with one layer of material, it is called a mono-layer film. When it is made with multiple layers of material, it is called co-extruded film.HC blown film extrusion and has lines with up to 11 layers of film
HC blown extrusion film have 2 structures, symmetrical and asymmetrical structure.
Symmetrical structure: PE/PE/PE/TIE/PA/PA/PA/TIE/PE/PE/PE
Asymmetrical structure:PA/TIE/PE/PE/TIE/PA/PA/PA/TIE/PE/PE.
And HC can also provide EVOH film, with symmetrical and asymmetrical structure.
Symmetrical structure: PE/PE/PE/TIE/EVOH/TIE/PE/PE/PE
PE/PE/PE/TIE/PA/EVOH/PA/TIE/PE/PE/PE
Asymmetrical structure:PA/TIE/PE/PE/TIE/PA/EVOH/PA/TIE/PE/PE.
★Product Specifications★
|
Material |
PE/PA/PE, PE/PA/EVOH/PE, |
|
Structure |
11 Layer Co-Extrusion |
|
Thickness |
50-250um,Support customer customization |
|
Width |
50mm-2400mm |
|
Appearance |
Smooth / Embossed Bag Film |
|
Color |
Transparent, black Support customer customization |
|
Temp Range |
-45 to 100 Degree |
|
Certification |
ISO, SGS, FDA, ROHS, BPA free |
|
Feature |
Low Oxygen Transmission Rate, Low Water Vapour Transmission Rate, High Puncture Resistance, Food Grade material, Direct Contact With Food |
★Applications★
★3 side vacuum pouch film
★tube bag film
★lidding film
★Air column bag film
★Anti UV CIPP film
★FIBC film
★FAQ★
Q1. Are you a factury or trade company?
A1. We are professional manufacturer of multi-layer coextrusion barrier composite film, which has over thirty years' experience in this field.
Q2. what's your product equipment?
A2. 11 layer WH blown film line from German,
9 layer Macchi blown film line from Italy,
9 layer BE blown film line from Canada,
7 layer Macchi blown film line from Italy,
Q3.Can you provide sample?
A3. Yes, the sample is free, we will be very grateful if you can pay shipping cost.
Q4. How do you test your product?
A4.Our company has a dedicated laboratory, we will have a professional product testing, we can provide technical data sheet for each product
Q5. What should be provided when placing orders?
A5.The material, structure, size, thickness, width, length, and order quantity
