HC blown extrusion film have 2 structures, symmetrical and asymmetrical structure.
Symmetrical structure: PE/PE/PE/TIE/PA/PA/PA/TIE/PE/PE/PE
Asymmetrical structure:PA/TIE/PE/PE/TIE/PA/PA/PA/TIE/PE/PE.
And HC can also provide EVOH film, with symmetrical and asymmetrical structure.
Symmetrical structure: PE/PE/PE/TIE/EVOH/TIE/PE/PE/PE
PE/PE/PE/TIE/PA/EVOH/PA/TIE/PE/PE/PE
Asymmetrical structure:PA/TIE/PE/PE/TIE/PA/EVOH/PA/TIE/PE/PE.
★Product Description★

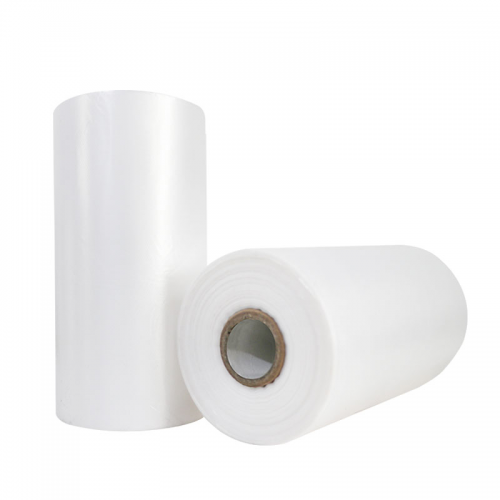

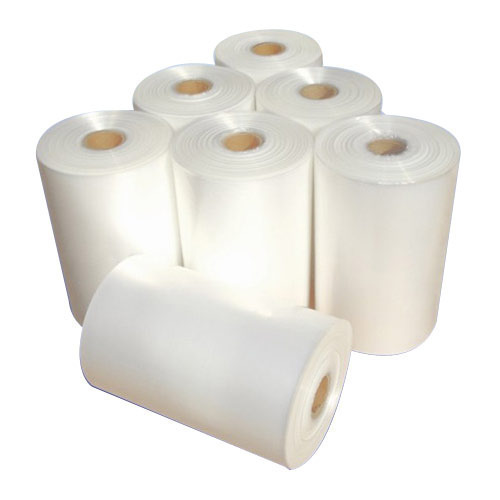

The multi-layer co-extrusion film uses two or more plastic materials, melted into a liquid state at high temperature, and enters a precision die. The internal runner system is designed to combine the melts, and then the cooling wheel is shaped and then rewinded. The base material layer and the adhesive layer are completely fused and integrated into one piece.
The multi-layer co-extruded film has excellent puncture resistance, heat sealability, cold resistance, water resistance and gas resistance, and good mechanical processing performance. It replaces traditional laminated packaging materials, which not only saves the cost of secondary processing, but also improves The shelf life of the food can effectively seal its freshness and aroma. Suitable for all kinds of refrigerated and frozen food packaging.
HC blown extrusion film have 2 structures, symmetrical and asymmetrical structure.
Symmetrical structure: PE/PE/PE/TIE/PA/PA/PA/TIE/PE/PE/PE
Asymmetrical structure:PA/TIE/PE/PE/TIE/PA/PA/PA/TIE/PE/PE.
And HC can also provide EVOH film, with symmetrical and asymmetrical structure.
Symmetrical structure: PE/PE/PE/TIE/EVOH/TIE/PE/PE/PE
PE/PE/PE/TIE/PA/EVOH/PA/TIE/PE/PE/PE
Asymmetrical structure:PA/TIE/PE/PE/TIE/PA/EVOH/PA/TIE/PE/PE.
★Product Specifications★
|
Material |
PE/PA/PE, PE/PA/EVOH/PE, |
|
Structure |
11 Layer Co-Extrusion |
|
Thickness |
50-250um,Support customer customization |
|
Width |
50mm-2400mm |
|
Appearance |
Smooth / Embossed Bag Film |
|
Color |
Transparent, black Support customer customization |
|
Temp Range |
-45 to 100 Degree |
|
Certification |
ISO, SGS, FDA, ROHS, BPA free |
|
Feature |
Low Oxygen Transmission Rate, Low Water Vapour Transmission Rate, High Puncture Resistance, Food Grade material, Direct Contact With Food |
★Applications★
★3 side vacuum pouch film
★tube bag film
★lidding film
★Air column bag film
★Anti UV CIPP film
★FIBC film
★FAQ★
Q1. Are you a factury or trade company?
A1. We are professional manufacturer of multi-layer coextrusion barrier composite film, which has over thirty years' experience in this field.
Q2. what's your product equipment?

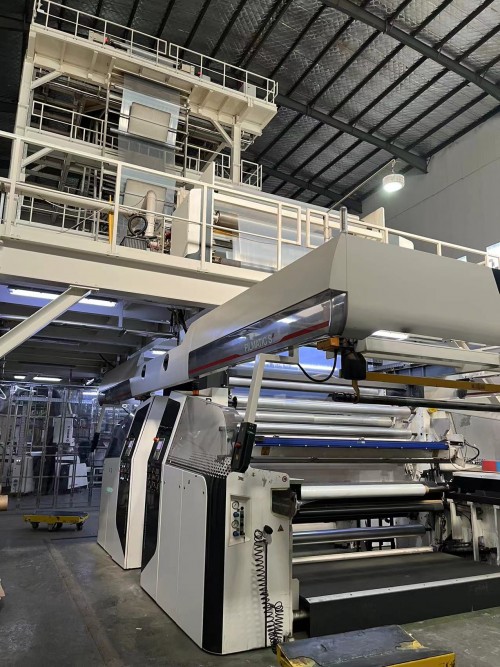

A2. 11 layer WH blown film line from German,
9 layer Macchi blown film line from Italy,
9 layer BE blown film line from Canada,
7 layer Macchi blown film line from Italy,
Q3.Can you provide sample?
A3. Yes, the sample is free, we will be very grateful if you can pay shipping cost.
Q4. How do you test your product?
A4.Our company has a dedicated laboratory, we will have a professional product testing, we can provide technical data sheet for each product
Q5. What should be provided when placing orders?
A5.The material, structure, size, thickness, width, length, and order quantity
