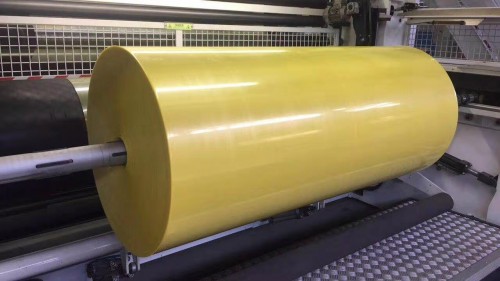

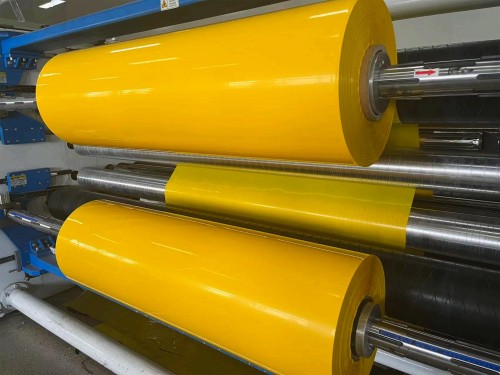

UV-CIPP (UV Cured-In-Place-Pipe) UV-cured lined hose is made of light-cured composite material, and is professionally used to repair various drainage pipes such as sewage pipes and rainwater pipes.
• Small impact on traffic, etc. Truly 100% trenchless lining repair, no need to excavate work pits.
•The construction has good controllability and short construction period. It adopts the pull-in type, no need to turn over, and the whole process of curing is monitored by CCTV; the average curing speed on site is 1 m/min, and each construction section does not consider the cleaning of the pipe wall.
★Product Description★

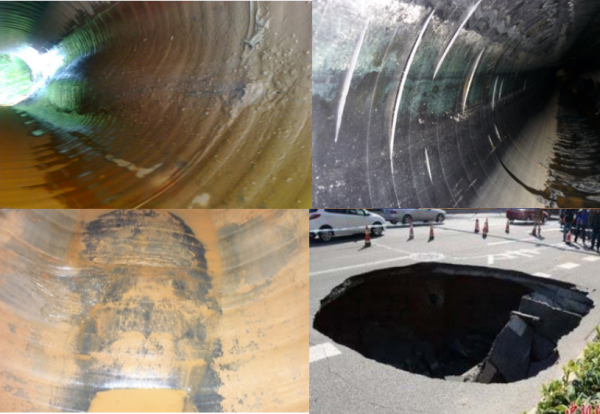

Why plumbing needs to be repaired
After years of operation of various pipelines, due to corrosion, poor operation management and other reasons, various damages and leakages will inevitably occur, resulting in serious economic losses. The project period is long. How to restore the safe operation of pipelines cost-effectively and quickly has received great attention at home and abroad, so the research on pipeline repair technology is of great significance.
Pipeline repair technology
Pipeline repair refers to adopting various technologies to restore the normal use function of damaged and leaking pipelines. The repair includes two technologies: external anti-corrosion layer repair and internal repair. Carry out the detection and evaluation of the outer anti-corrosion layer, and then repair it according to the evaluation report; the inner repair technology is relatively difficult, generally there is a hose turning method lining technology: after fully impregnating the fiber hose with an impermeable membrane with resin, air pressure is used. Or the water pressure makes it turn over and stick to the inner wall of the old pipe, and after thermosetting, it forms a smooth glass-lined steel pipe, so as to complete the repair of the old pipe.
★Product Specifications★
|
Material |
PE/PA/PE |
|
Structure |

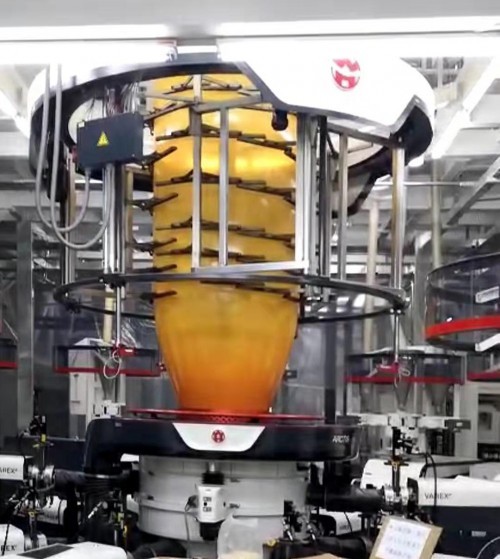

11 Layer Co-Extrusion |
|
Thickness |
200um,Support customer customization |
|
Length |
Up to 2150mm |
|
Color |
Yellow, Transparent, Support customer customization |
|
Certification |
ISO, SGS, FDA, ROHS, BPA free |
|
Feature |
Anti-UV, High Puncture Resistance, Low Oxygen Transmission Rate, Low Water Vapour Transmission Rate, |
★Applications★
• Suitable for underground drainage pipes or channels;
• The section of the repaired object can be special shapes such as circle, oval, egg, square, etc.;
•The inner diameter of the applicable circular pipe is usually DN150~1200mm, and the largest pipe diameter can be up to DN2000mm;
• The length of a single (usually) repair can reach 200m, and other lengths must be customized;
★FAQ★
Q1. Are you a factury or trade company?
A1. We are professional manufacturer of multi-layer coextrusion high barrier composite film, which has over thirty years' experience in this field.
Q2. What are your main products?
A2.We are flexible packing supplier, like buffer cushion film, vacuum bags/ film, EVOH film, UV-CIPP film etc.
Q3.Can you provide sample?
A3. Yes, the sample is free, we will be very grateful if you can afford shipping cost.
Q4. How do you test your product?
A4.Our company has a dedicated laboratory, we will have a professional product testing, we can provide technical data sheet for each product
Q5. What should be provided when placing orders?
A5.The material, structure, size, thickness, width, length, and order quantity.
